Phase II PHT-1800 Portable Hardness Tester – Canada
Phase II PHT-1800 Portable Hardness Tester – Canada
Couldn't load pickup availability

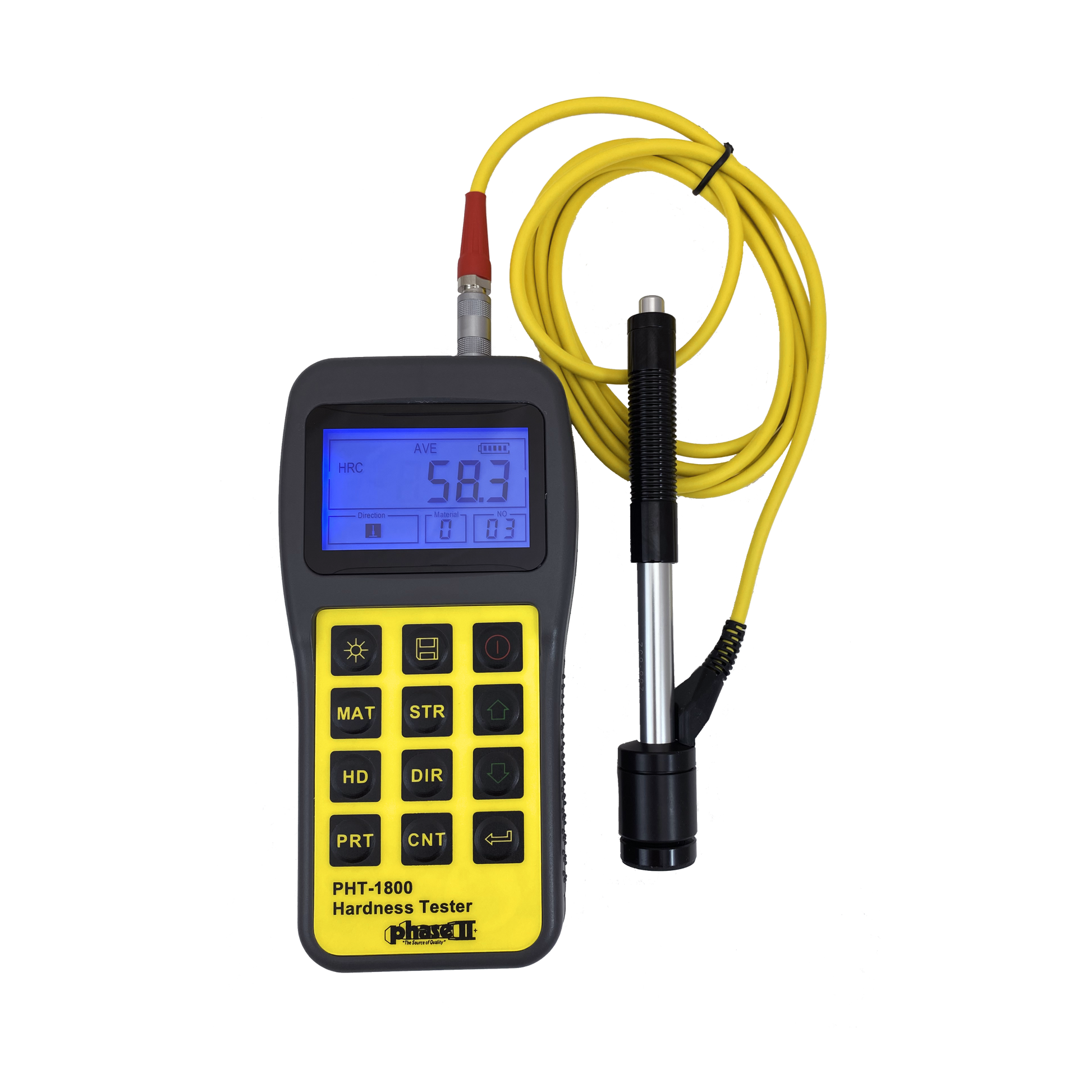

Versatile. Accurate. Trusted Worldwide. The PHT-1800 is a rugged, digital portable hardness tester ideal for quick readings on large, hard metal parts. With fast test speeds, USB data output, and multi-scale conversions, it’s a reliable choice for both fieldwork and quality control labs.
Designed to meet ASTM A956 standards, this unit allows easy conversion to Rockwell, Brinell, Vickers, Shore, and more. Comes standard with a D impact device and calibrated block. Fully compatible with optional probes, test rings, and mini printer.
Testavor is an official Canadian partner of Phase II. Units ship directly from the U.S. with all import duties and tariffs included. Covered by a full 5-year manufacturer warranty.
Key Features
- State-of-the-art digital Leeb hardness tester
- Auto identification of impact device (D included standard)
- Backlit LCD with easy-to-navigate keypad
- USB output for data transfer
- 100 group memory storage with min/max/mean display
- Direct conversions to HRC, HRB, Brinell, Vickers, Shore
- Compact, durable design for field or shop use
Specifications
- Accuracy: ±4 HL
- Range: 200–960 HL
- Materials: Steel, tool steel, stainless, cast iron, bronze, aluminum, copper alloys
- Memory: 100 measurement groups
- Battery: 4 × AA alkaline
- Display: LCD with backlight
- Dimensions: 150 × 74 × 32 mm
- Operating Temp: 5–104°F
- Shipping Weight: 10 lbs

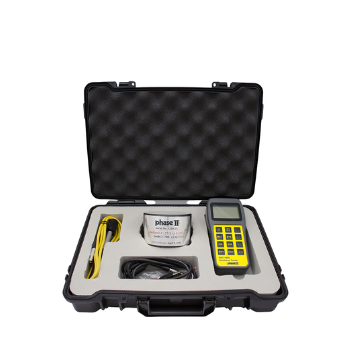

What’s Included
- PHT-1800 Base Unit
- Impact Device D
- Calibrated Test Block
- Cleaning Brush
- Custom Carry Case
- User Manual
Optional Accessories
- NIST-Certified Test Block (Upgrade option)
- Mini Printer for Field Reports
- Alternate Impact Devices: DC, D+15, DL, G, C
- Special Radiused Ring Set (for curved surfaces)
Frequently Asked Questions
What is the difference between the Standard and Certified Kit?
The Certified Kit includes a NIST-traceable certified test block, ideal for facilities requiring documented calibration for audits or ISO compliance.
Can this tester be used on curved or irregular surfaces?
Yes, with optional support rings and alternate probes such as the DL or G type, it can test challenging geometries like castings, small areas, or gear teeth.
Does the PHT-1800 meet ASTM standards?
Yes, it conforms to ASTM A956 for portable Leeb hardness testing on metal surfaces.
Is the unit easy to recalibrate?
Yes. Follow the included manual or use the NIST block to confirm measurement accuracy. We also offer calibration services in Canada.
All Phase II testers sold by Testavor are backed by a 5-year manufacturer warranty. Order with confidence — Canadian customers are fully covered with support and optional calibration services available.
